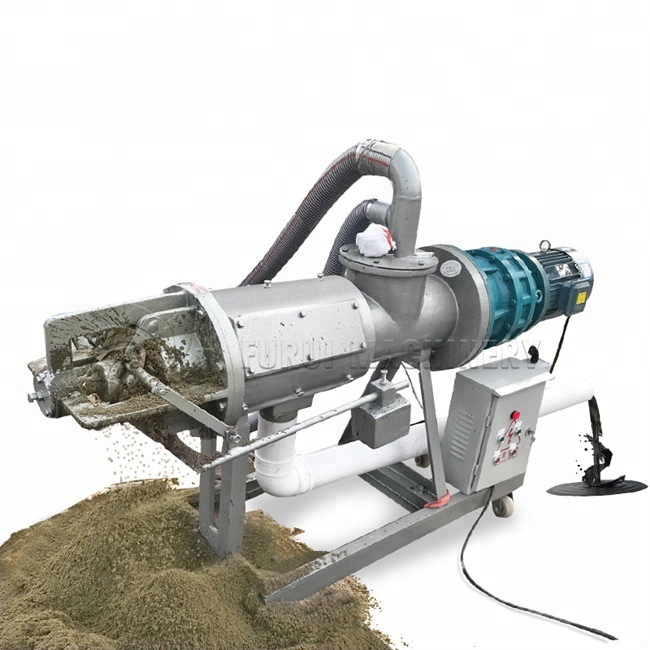

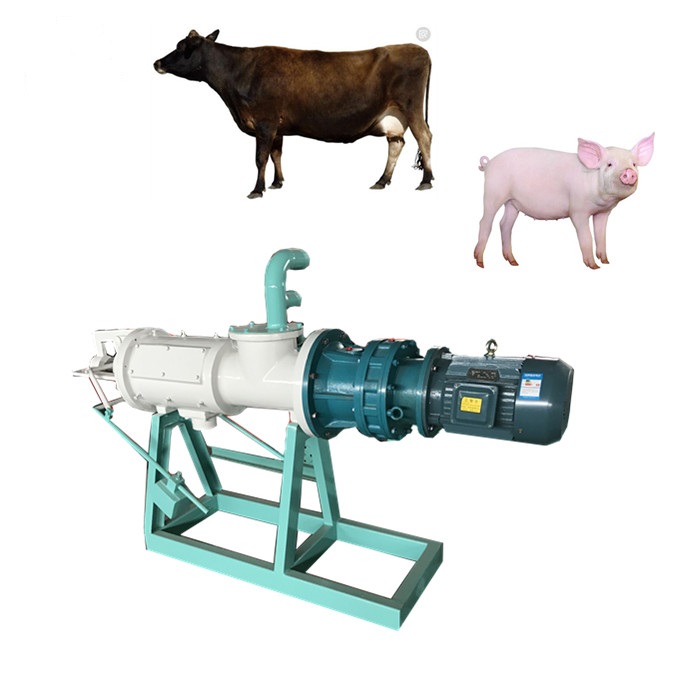

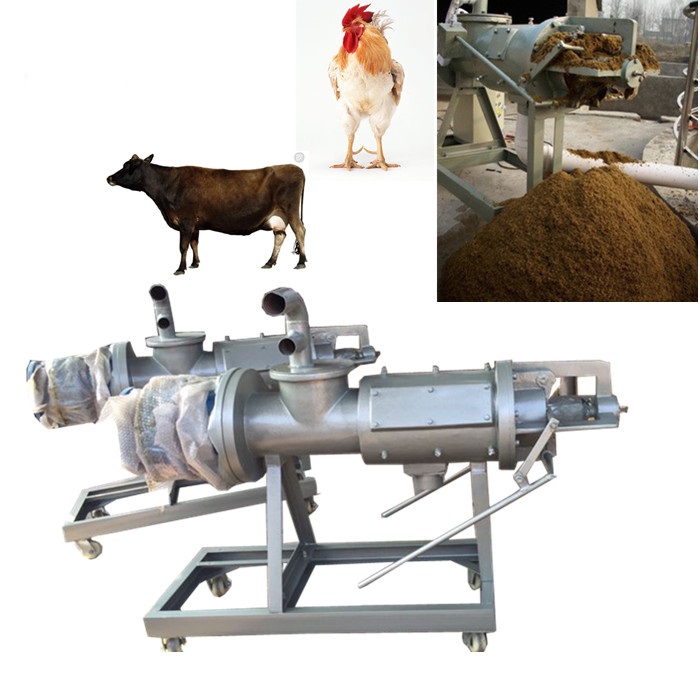

Pig/Cow/Chicken Manure solid liquid separator

Application:The machine is widely used in industries as municipal and industrial

waste water treatment,food processing, pharmaceuticals and chemicals, etc.



Function:The machine use the pump to pull the fowl manure, cow dung,into

dewater equipment,the material through the screen and then press by the screw

,the rotary speed of the machine can reach 45r/min,within the press of the screen

 and high rotary speed,the material will be dewatered by the machine,and the

water will enter into the pool through screen.

Working Principle of pig manure solid liquid separator

Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor.

 The processing material is fed into the bowl through a stationery inlet tube and is

smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant

sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same

 direction as the bowl, but at a different speed, thus moving the solids towards the

conical end of the bowl.



Technical parameters of pig manure solid liquid separator

Model	Power	Voltage	Rotary speed	Working capacity	Weight	Water pump
FR-180	5.5kw	380v	43r/min	Cow manure:4-6m³/h Pig manure:8-12m³/h Chicken manure:2-4m³/h	650kg	3kw/1450r/min
FR-260	7.5kw	380v	43r/min	Cow manure:7-10m³/h Pig manure:15-20m³/h Chicken manure:5-7m³/h	750kg	4kw/1450r/min

screw separators offer a wide range of specifications and options to allow installation

 in a wide range of  applications:

• Livestock Slurries

• Green Bedding production

• Pulp & Paper industry

• Food Processing

• Biogas / Anerobic Digestion

• Abattoirs and Meat

• Processing

Advantage:

• Squeezes water out of liquid manure
• Separates solids into piles of dry solids
• The only separator that works with thick slurries and dilute wastewaters
• Cleaning every 3–4 months only
• Meets environmental effluent standards
• Reduces solids content of manure
• Reduces size of new pits and lagoons
• Reduces pollutant nutrient content
• Re-use solids for bedding
• Re-use liquids for flushing
• Recycle solids for refeeding
• Prolongs life of existing lagoon
• Minimizes cost of hauling waste
• Improves biological treatment
• Minimizes odor
• Reducing field spreading acreage
• Solids moisture content; 45–60%

Welcome to contact us if you have any questions:  sludgedewater@gmail.com
