Product Name: Polymer Dosing Equipment
Polymer Dosing Equipment
Automatic Dosing system
Chemical dosing machine
Polymer Dosing
Product description: Polymer Dosing Equipment
Product details

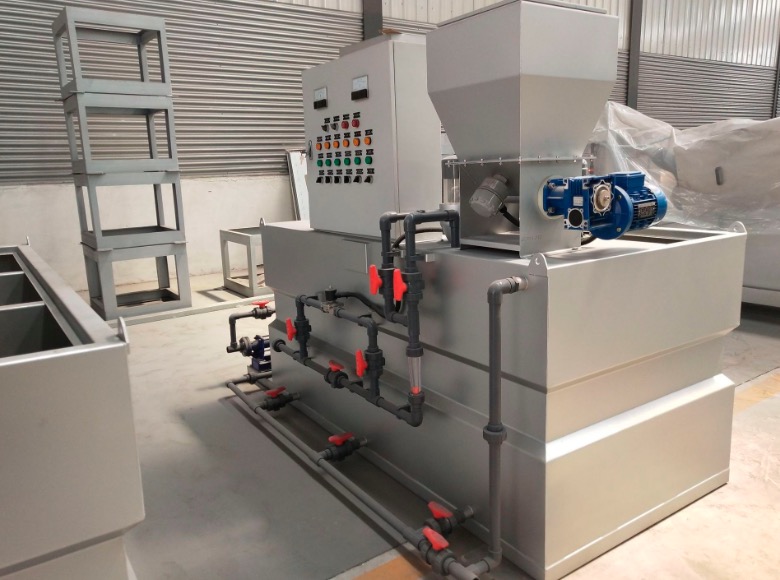

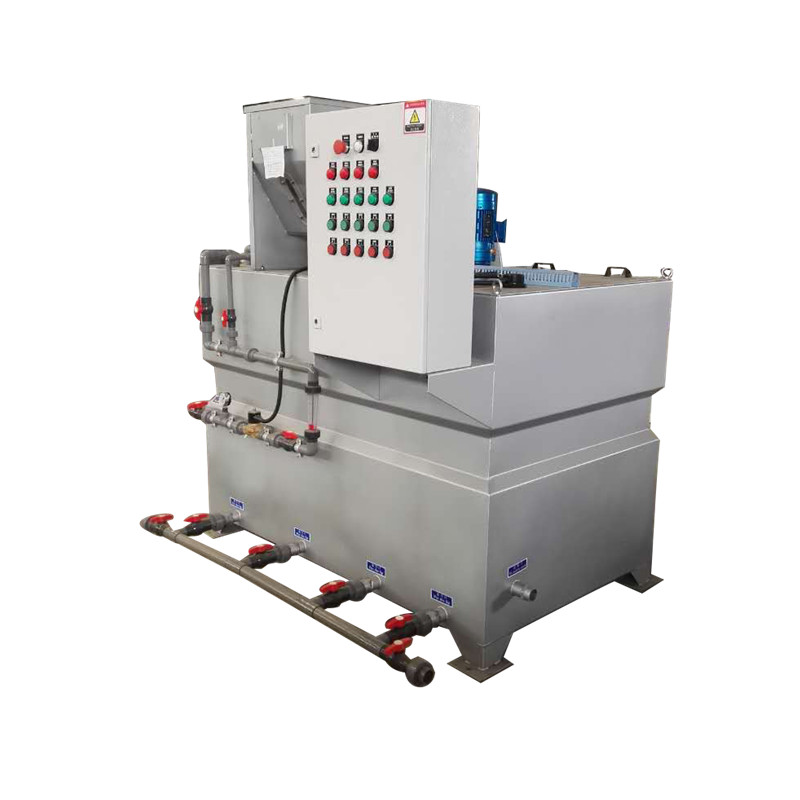

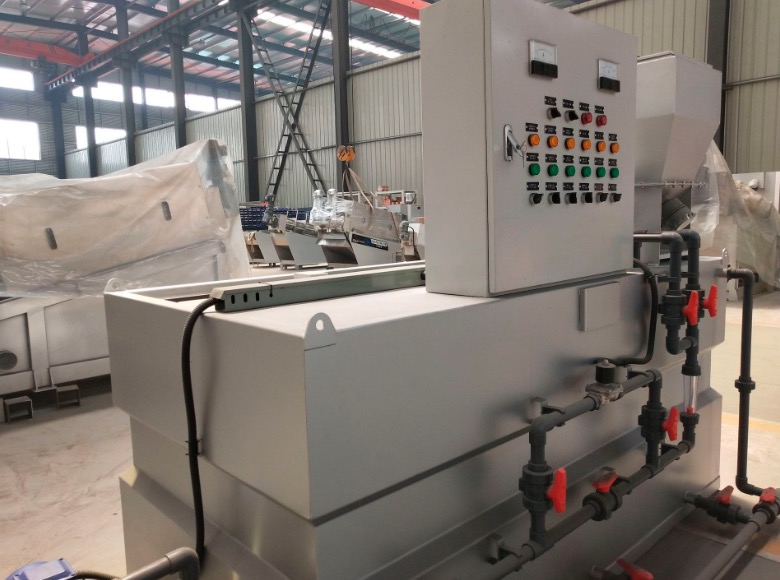

Polymer Dosing Equipment
Automatic Chemical Dosing System is a auxiliary auto-equipment, which can prepare and throw polymer solution continually. It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions. The equipment can be widely used in municipal wastewater treatment, sludge dewatering treatment and other technical treatment.
Feature:

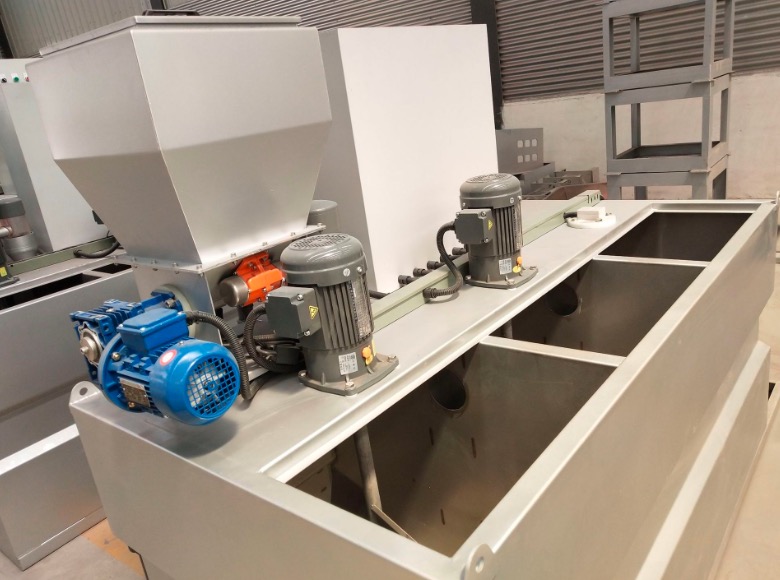

1.Continuously working with 3-tank integration design (mixing tank, aging tank, storage tank), easy to operate and maintain, low total cost of ownership
2.HYJY1can be extended as a more automatic 2 storage tank type in accordance with the actual needs
3.With powdered or liquid state (optional) dual feed design to meet different needs. Proportional allocation function makes it possible to prepare liquid concentration by requirements
4.With uniform and moderate concentration to reduce the agglomeration causing by the improper manual allocation. Blocking of pipe or pump, unnecessary maintenance costs and powder expenses could be well avoided
5、Powder feeding hopper with anti-condensation, heating and insulation function can avoid the agglomeration or deterioration
6.Powder feeder with RPM LCD display makes the powder feed rate and concentration more precise controlled
7.Powder/liquid mixer won the new patent product design, the fusion effect is 100%
8.Unique design of automatic intermittent operation and cross mixing function at stand-by time makes the uniform solution always working in the best condition
9.When powder feeding hopper reaches the minimum stock, led light warning and automatic stop function makes overall maneuverability more perfect.
|
Model |
STD500 |
STD1000 |
STD1500 |
STD2000 |
STD3000 |
|
Preparative capability (L/h) |
500 |
1000 |
1500 |
2000 |
3000 |
|
Power (Kw) |
0.92 |
2.43 |
2.43 |
2.43 |
4.87 |
|
Dimension ( L*W*H) mm |
1400 |
2080 |
2210 |
2290 |
2490 |
|
1000 |
1390 |
1460 |
1620 |
1720 |
|
|
1490 |
1770 |
1810 |
1970 |
2270 |
|
|
Net Weight |
220 |
400 |
440 |
540 |
560 |
|
Working Weight |
920 |
2200 |
2580 |
3440 |
4460 |
